ESYLUX - KNX

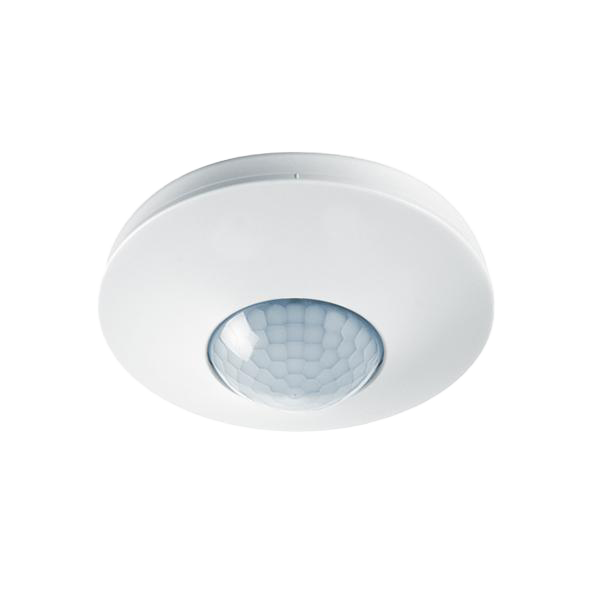

ESYLUX Compact PIR Sensor - PD 360i/8 O AUX 30V KNX ATMO

Detection via Presence, Light, Acoustics, Temperature, Humidity, VOC 360° Downward Presence Detection, 8m Range

White round Housing, surface ceiling mount

2 x switching/regulating channels, 1 x switching channel, Delay OFF: up to 720mins, Nightlight feature

Class II, IP20

ESYLUX Compact PIR Sensor - PD-C 360i/8 A KNX ATMO

Detection via Presence, Light, Acoustics, Temperature, Humidity 360° Downward Presence Detection, 8m Range

White round Housing, surface ceiling mount

2 x switching/regulating channels, 1 x switching channel, Delay OFF: up to 720mins, Nightlight feature

Class III, IP20

ESYLUX Compact PIR Sensor - PD-C 360i/8 T KNX ATMO

Detection via Presence, Light, Acoustics, Temperature 360° Downward Presence Detection, 8m Range

White round Housing, surface ceiling mount

2 x switching/regulating channels, 1 x switching channel, Delay OFF: up to 720mins, Nightlight feature

Class III, IP20

ESYLUX Flat PIR Sensor - PD-Flat 360/8i Round White KNX

360° Downward Presence Detection, 8m

White round trim, Recess or surface ceiling mount (kits required - see below)

2 x switching/regulating channels, 1 x switching channel Delay OFF: up to 720mins

Class III, IP20

ESYLUX Flat PIR Sensor - PD-Flat 360/8i Round Black KNX

360° Downward Presence Detection, 8m

White round trim, Recess or surface ceiling mount (kits required - see below)

2 x switching/regulating channels, 1 x switching channel Delay OFF: up to 720mins

Class III, IP20

ESYLUX Flat PIR Sensor - PD-Flat 360/8i Square White KNX

360° Downward Presence Detection, 8m

White round trim, Recess or surface ceiling mount (kits required - see below)

2 x switching/regulating channels, 1 x switching channel Delay OFF: up to 720mins

Class III, IP20

ESYLUX Flat PIR Sensor - PD-Flat 360/8i Square Black KNX

360° Downward Presence Detection, 8m

White round trim, Recess or surface ceiling mount (kits required - see below)

2 x switching/regulating channels, 1 x switching channel Delay OFF: up to 720mins

Class III, IP20

ESYLUX LS-Flat Mini KNX Light sensor

Brightness Controller 0-10,000lux , Light detection from 3m, of approx 0.5m diameter

ESYLUX Compact PIR Sensor - PD-C 180i/8 KNX Corridor

180° Horizontal Presence Detection, 16 x8m Range

White round Housing, Recessed or surface wall mount

2 x switching/regulating channels, 1 x switching channel Delay OFF: up to 60mins

Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below

ESYLUX Compact PIR Sensor - PD-C 180i/8 KNX ECO

180° Horizontal Presence Detection, 16 x 8m Range

White round Housing, Recessed or surface wall mount

2 x switching channels, Delay OFF: C1: 1-30 min - Light C2:1-60 min
Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX 180 Corridor Accessory White

Cover - IP20

ESYLUX 180 Corridor Accessory Anthracite

Cover - IP20

ESYLUX ESYLUX 180 Corridor Accessory White

Cover - IP44

ESYLUX Dual Technology Corridor Accessory
Surface Mounting Box - IP44

ESYLUX Compact PIR Sensor - PD-C 360i/8 KNX UP

360° Downward Presence Detection, 8m Range

White round Housing, Recessed or surface ceiling mount

3 x switching channels, Delay OFF: up to 720mins

Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/24 KNX UP

360° Downward Presence Detection, 24m Range

White round Housing, Recessed or surface ceiling mount

3 x switching channels, Delay OFF: up to 720 mins

Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/24 KNX ECO UP

360° Downward Presence Detection, 24m Range

White round Housing, Recessed or surface ceiling mount

2 x switching channels, Delay OFF: up to 720mins

Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below

ESYLUX Compact PIR Sensor - PD-C 360i/32 KNX
360° Downward Presence Detection, 32m Range

White round Housing, Recessed or surface ceiling mount

2 x switching/regulating channels, 1 x switching channel Delay OFF: up to 720mins

Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below

ESYLUX Compact PIR Sensor Accessory

Recess Mount Kit

ESYLUX Compact PIR Sensor Accessory

White Surface Mount Kit - IP54

ESYLUX Compact PIR Sensor Accessory

ESYLUX Compact PIR Sensor Accessory
Black Trim Kit - 8m

ESYLUX Compact PIR Sensor Accessory Black

ESYLUX Compact PIR Sensor Accessory

Silver Surface Mount Kit - IP54

Requires either an 8m or 24m/32m silver trim kit

ESYLUX Compact PIR Sensor Accessory
Silver Trim Kit - 8m

ESYLUX Compact PIR Sensor Accessory

Silver Trim Kit - 24m/32m

ESYLUX Compact PIR Sensor Accessory

Basket Guard - IK10, 180 X 90mm

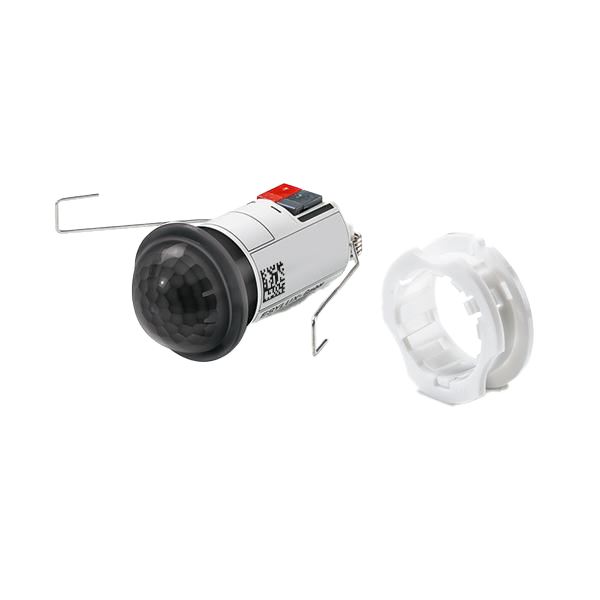

ESYLUX ESYLUX Compact MINI PIR Sensor - PD-C 360i/8 Mini KNX

360° Downward Presence Detection, 8m Range

2 x switching/regulating channels, 1 x switching channel Delay OFF: up to 720mins

Ceiling recess mount, 25mm dia. cut-out.

Class III, IP55

ESYLUX ESYLUX Compact MINI PIR Sensor BLK - PD-C 360i/8 Mini KNX

360° Downward Presence Detection, 8m Range

2 x switching/regulating channels, 1 x switching channel Delay OFF: up to 720mins

Ceiling recess mount, 25mm dia. cut-out.

Class III, IP55

ESYLUX Compact MINI PIR Sensor - PD-C 360i/12 Mini KNX

360° Downward Presence Detection, 12m Range

2 x switching/regulating channels, 1 x switching channel Delay OFF: up to 720mins

Ceiling recess mount, 25mm dia. cut-out.

Class III, IP65

ESYLUX BASIC PIR Sensor - PD-C 360i/8 KNX Basic

360° Downward Presence Detection, 8m Range

White round Housing, Recessed or surface ceiling mount

1 x switching channel, Delay OFF: up to 720mins

Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

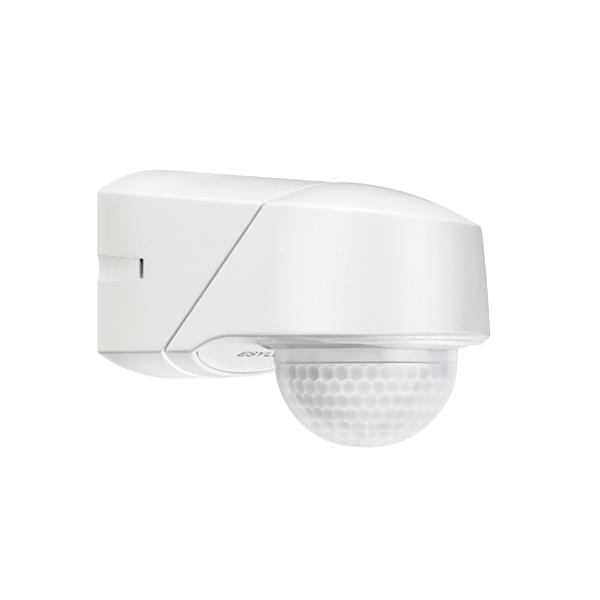

RC 230i KNX White Motion Detector

Motion detector with 230deg of detection and 40mtr diameter range
360deg creep protection for unbroken coverage. Wall or Ceiling mount
2 x switching/regulating channels, 1 x switching channel HVAC, Delay OFF: up to 250mins
Class III, IP54

RC 230i KNX Black Motion Detector

Motion detector with 230deg of detection and 40mtr diameter range
360deg creep protection for unbroken coverage. Wall or Ceiling mount
2 x switching/regulating channels, 1 x switching channel HVAC, Delay OFF: up to 250mins
Class III, IP54
