ESYLUX Compact PIR Sensors - DALI Control

ESYLUX Compact PIR Sensor -PD-C 360bt/8 APC10 PS plus DALI-2 360°
Downward Presence Detection, 8m Range

Integral 250mA DALI-2 Power Supply and Application Controller. Individual control of up to 16 groups and 16 scenes. White round Housing, Recessed ceiling mount

4 x push button inputs, 16 x Lighting channels, 1 xHVAC channel, Regulate, Control, Dimming, Switching. Bluetooth programming directly via ESY-App

Class II, 230V AC, IP20, Max Switching 600w LED

Applicable programming remote: Esy Control APP

ESYLUX Compact PIR Sensor -PD-C 360bt/24 APC10 PS plus DALI-2 360° Downward Presence Detection, 24m Range

Integral 250mA DALI-2 Power Supply and Application Controller. Individual control of up to 16 groups and 16 scenes. White round Housing, Recessed ceiling mount

4 x push button inputs, 16 x Lighting channels, 1 xHVAC channel, Regulate, Control, Dimming, Switching. Bluetooth programming directly via ESY-App

Class II, 230V AC, IP20, Max Switching 600w LED

Applicable programming remote: Esy Control APP

ESYLUX Compact PIR Sensor -PD-C 360bt/32 APC10 PS plus DALI-2 360°
Downward Presence Detection, 32m Range

Integral 250mA DALI-2 Power Supply and Application Controller. Individual control of up to 16 groups and 16 scenes. White round Housing, Recessed ceiling mount

4 x push button inputs, 16 x Lighting channels, 1 xHVAC channel, Regulate, Control, Dimming, Switching. Bluetooth programming directly via ESY-App

Class II, 230V AC, IP20, Max Switching 600w LED

Applicable programming remote: Esy Control APP

EP10428272-PD-C 360bt/8 APC20 PS plus DALI-2

360° Downward Presence Detection, 8m Range

Additional functions of APC20 on top of those from APC10 is : Time dependant control of functions, Stairwell function, Driver power cutoff, Swarm functions, Central functions

Applicable programming remote: Esy Control APP

EP10428111-PD-C 360bt/24 APC20 PS plus DALI-2

360° Downward Presence Detection, 24m Range

Additional functions of APC20 on top of those from APC10 is : Time dependant control of functions, Stairwell function, Driver power cutoff, Swarm functions, Central functions

Applicable programming remote: Esy Control APP

EP10428289-PD-C 360bt/32 APC20 PS plus DALI-2

360° Downward Presence Detection, 32m Range

Additional functions of APC20 on top of those from APC10 is : Time dependant control of functions, Stairwell function, Driver power cutoff, Swarm functions, Central functions

Applicable programming remote: Esy Control APP

EP10428296-PD-C 360bt/8 APC30 HCL PS plus DALI-2

360° Downward Presence Detection, 8m Range

Additional functions of APC30 on top of those from APC20 is : Dedicated for use when Tuneable White lights are being used.

Applicable programming remote: Esy Control APP

EP10428302-PD-C 360bt/24 APC30 HCL PS plus DALI-2

360° Downward Presence Detection, 24m Range

Additional functions of APC30 on top of those from APC20 is : Dedicated for use when Tuneable White lights are being used.

Applicable programming remote: Esy Control APP

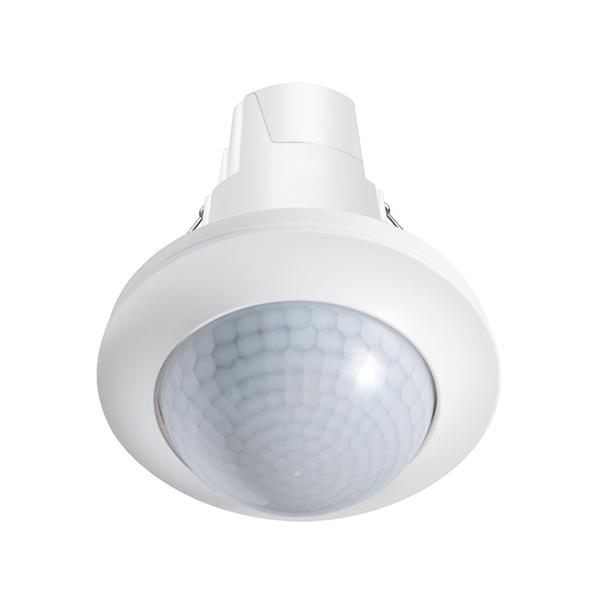

EP10428319-PD-C 360bt/32 APC30 HCL PS plus DALI-2

360° Downward Presence Detection, 32m Range

Additional functions of APC30 on top of those from APC20 is : Dedicated for use when Tuneable White lights are being used.

Applicable programming remote: Esy Control APP

SMARTCONTROLLER APC10 PS DALI-2

DALI-2-certified control unit with integrated bus power supply (250 mA)

Applicable programming remote: Esy Control APP

SMARTCONTROLLER APC20 PS DALI-2

DALI-2-certified control unit with integrated bus power supply (250 mA)

Applicable programming remote: Esy Control APP

SMARTCONTROLLER APC30 PS DALI-2

DALI-2-certified control unit with integrated bus power supply (250 mA)

Applicable programming remote: Esy Control APP

ESYLUX Compact PIR Sensor - PD-C 360/8 BMS DALI-2
360° Downward Presence Detection, 8m Range

Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus

White round Housing, Recessed or surface ceiling mount

2 x push button inputs, 1 x channel, send values.

Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360/24 BMS DALI-2

360° Downward Presence Detection, 24m Range

Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus

White round Housing, Recessed or surface ceiling mount

2 x push button inputs, 1 x channel, send values.

Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360/32 BMS DALI-2

360° Downward Presence Detection, 32m Range

Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus

White round Housing, Recessed or surface ceiling mount

2 x push button inputs, 1 x channel, send values.

Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX MD-C 360/40 BMS WAREHOUSE SM DALI-2

360° Downward Presence Detection, 40m Range

Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus

White round Housing, Recessed or surface ceiling mount

2 x push button inputs, 1 x channel, send values.

Class III, IP20 - Recess mount / IP54 - Surface mount supplied

ESYLUX PD 180/16 BASIC BMS DALI-2

180° Presence Detection, 16m Range

Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus

White round housing, Wall mount

2 x push button inputs, 1 x channel, send values.
