ESYLUX - 230V AC

ESYLUX Defensor PIR Sensor - MD230 AN

230° (2 x 115°) Forward Detection (adjustable), 40m Diagonal Range

360° Anti-creep protection

Anthracite housing, Wall or ceiling mount, Manual override

1-240 min Delay ON (adjustable), Time dependent operation modes

2300W (Resistive) 600W (LED), IK07, IP55

Defensor MD230 Installation Video

ESYLUX Defensor PIR Sensor - MD230 WH

230° (2 x 115°) Forward Detection (adjustable), 40m Diagonal Range

360° Anti-creep protection

White housing, Wall or ceiling mount, Manual override

1-240 min Delay ON (adjustable), Time dependent operation modes

2300W (Resistive) 600W (LED), IK07, IP55

Defensor MD230 Installation Video

ESYLUX Defensor PIR Sensor - MD280 AN

280° (3 x 95°) Forward Detection (adjustable), 40m Diagonal Range

360° Anti-creep protection

Anthracite housing, Wall or ceiling mount, Manual override

1-240 min Delay ON (adjustable), Time dependent operation modes

2300W (Resistive) 600W (LED), IK07, IP55

ESYLUX Defensor PIR Sensor - MD280 WH

280° (3 x 95°) Forward Detection (adjustable), 40m Diagonal Range

360° Anti-creep protection

Anthracite housing, Wall or ceiling mount, Manual override

1-240 min Delay ON (adjustable), Time dependent operation modes

2300W (Resistive) 600W (LED), IK07, IP55

ESYLUX Defensor PIR Sensor Accessory

Internal/Exterior corner
Corner Bracket - Anthracite

ESYLUX Defensor PIR Sensor Accessory

Internal/External corner
Corner Bracket - White

ESYLUX Defensor Twilight Switch - Ambient Light Detection

2300W (Resistive) 600W (LED), Manual override

White housing, Wall mount, IK07, IP55

Defensor Twilight Switch Installation Video

ESYLUX Defensor Twilight Switch - Ambient Light Detection with Timer

Defensor Twilight Switch Installation Video

ESYLUX MD-W Sensor - MD-W 200i Black
200° (2 x 100°) Detection (adjustable), 20m Diagonal Range

Black housing, Wall mount

15 sec-16 min Delay ON (adjustable)

2300W (Resistive) 600W (LED), IP55

ESYLUX MD-W Sensor - MD-W 200i White

200° (2 x 100°) Detection (adjustable), 20m Diagonal Range

White housing, Wall mount

15 sec-16 min Delay ON (adjustable)

2300W (Resistive) 600W (LED), IP55

​ESYLUX MD-W Sensor Accessory

Silver Cover

ESYLUX Basic PIR Sensor - MD 360/8 Basic

360° Downward Motion Detection, 8m Range

White housing, Ceiling mount

15 sec-30 min Delay ON (adjustable), Manual override

2300W (Resistive) 600W (LED), Class II, IP40

ESYLUX Basic PIR Sensor - MD 360/24 Basic

360° Downward Motion Detection, 24m Range

White housing, Ceiling mount

15 sec-30 min Delay ON (adjustable), Manual override

2300W (Resistive) 600W (LED), Class II, IP40

ESYLUX Basic PIR Sensor - PD 360/8 Basic

360° Downward Presence Detection, 8m Range

White housing, Ceiling mount

15 sec-30 min Delay ON (adjustable), Manual override

2300W (Resistive) 600W (LED), Class II, IP40

ESYLUX Basic PIR Sensor - PD 360/24 Basic

360° Downward Presence Detection, 24m Range

White housing, Ceiling mount

15 sec-30 min Delay ON (adjustable), Manual override

2300W (Resistive) 600W (LED), Class II, IP40

ESYLUX Basic PIR Sensor - MD 360/24 Basic IP54
360° Downward Presence Detection, 8m Range

White housing, Ceiling mount

15 sec-30 min Delay ON (adjustable), Manual override

2300W (Resistive) 600W (LED), Class II, IP54

ESYLUX Basic PIR Sensor - PD 360/24 Basic IP54
360° Downward Presence Detection, 24m Range

White housing, Ceiling mount

15 sec-30 min Delay ON (adjustable), Manual override

2300W (Resistive) 600W (LED), Class II, IP54

ESYLUX Basic PIR Sensor - MD 360i/8 Basic IP54
360° Downward Presence Detection, 24m Range

White housing, Ceiling mount

15 sec-30 min Delay ON (adjustable), Manual override

2300W (Resistive) 600W (LED), Class II, IP54

ESYLUX Basic PIR Sensor - PD 360/8 Basic IP54

360° Downward Presence Detection, 8m Range

White housing, Ceiling mount

15 sec-30 min Delay ON (adjustable), Manual override

2300W (Resistive) 600W (LED), Class II, IP54

BASIC EXPRESS MD 360° 08 FM WH
360deg Downward Motion Detection, 8m Range

Recess mount- mounting kit included

1x switching channel, 15s – 30min Delay OFF, Pulse mode, Manual Override

2300W (Resistive) 400W (LED), Class II, Zero Cross Switching

IP23 – PDI/MDI remote for programming

BASIC EXPRESS PD 360° 08 FM WH
360deg Downward Presence Detection, 8m Range

Recess mount – mounting kit included

1x switching channel, 15s – 30min Delay OFF, Pulse mode, Manual Override

2300W (Resistive) 400W (LED), Class II, Zero Cross Switching

IP23 – PDI/MDI remote for programming

ESYLUX Flat Sensor - MD-Flat 360/8i Round White

360° Downward Motion Detection, 8m Range

White round trim, Recess or surface ceiling mount (kits required - see below)

1-30 min Delay ON (adjustable)

2300W (Resistive) 600W (LED), Class II, IP20

ESYLUX Flat Sensor - MD-Flat 360/8i Round Black

360° Downward Motion Detection, 8m Range

Black round trim, Recess or surface ceiling mount (kits required - see below)

1-30 min Delay ON (adjustable)

2300W (Resistive) 600W (LED), Class II, IP20

ESYLUX Flat PIR Sensor - MD-Flat 360/8i Square White

360° Downward Motion Detection, 8m Range

White square trim, Recess or surface ceiling mount (kits required - see below)

1-30 min Delay ON (adjustable)

2300W (Resistive) 600W (LED), Class II, IP20

ESYLUX Flat PIR Sensor - MD-Flat 360/8i Square Black

360° Downward Motion Detection, 8m Range

Black square trim, Recess or surface ceiling mount (kits required - see below)

1-30 min Delay ON (adjustable)

2300W (Resistive) 600W (LED), Class II, IP20

ESYLUX Flat PIR Sensor - PD-Flat 360/8i Round White

360° Downward Presence Detection, 8m Range

White round trim, Recess or surface ceiling mount (kits required - see below)

1-30 min Delay ON (adjustable)

2300W (Resistive) 600W (LED), Class II, IP20

ESYLUX Flat PIR Sensor - PD-Flat 360/8i Round Black

360° Downward Presence Detection, 8m Range

Black round trim, Recess or surface ceiling mount (kits required - see below)

1-30 min Delay ON (adjustable)

2300W (Resistive) 600W (LED), Class II, IP20

ESYLUX Flat PIR Sensor - PD-Flat 360/8i Square White

360° Downward Presence Detection, 8m Range

White square trim, Recess or surface ceiling mount (kits required - see below)

1-30 min Delay ON (adjustable)

2300W (Resistive) 600W (LED), Class II, IP20

ESYLUX Flat PIR Sensor - PD-Flat 360/8i Square Black

360° Downward Presence Detection, 8m Range

Black square trim, Recess or surface ceiling mount (kits required - see below)

1-30 min Delay ON (adjustable)

2300W (Resistive) 600W (LED), Class II, IP20

ESYLUX Compact PIR Sensor - MD-C 360i/8

360° Downward Motion Detection, 8m Range

White round housing, Recessed or surface ceiling mount

1 x switching channel, 1-30 min Delay OFF, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - MD-C 360i/24

360° Downward Motion Detection, 24m Range

White round housing, Recessed or surface ceiling mount

1 x switching channel, 1-30 min Delay OFF, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - MD-C 360i/32

360° Downward Motion Detection, 32m Range

White round housing, Recessed or surface ceiling mount

1 x switching channel, 1-15 min Delay OFF, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - MD-C 360i/32 Corridor

360° Downward Motion Detection, 32 x 16m Elliptical Detection Range

White round housing, Recessed or surface ceiling mount

1 x switching channel, 1-30 min Delay OFF, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/8

360° Downward Presence Detection, 8m Range

White round housing, Recessed or surface ceiling mount

1 x switching channel, 1-30 min Delay OFF, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360/8 Slave

360° Downward Presence Detection, 8m Range

White round housing, Recessed or surface ceiling mount

Parallel connection to master sensor required

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/8 Plus

360° Downward Presence Detection, 8m Range

White round housing, Recessed or surface ceiling mount

2 x switching channels, 1-30 min Delay OFF - Light / 1-120 min - HVAC, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/24

360° Downward Presence Detection, 24m Range

White round housing, Recessed or surface ceiling mount

1 x switching channel, 1-30 min Delay OFF, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/24 DIM

360° Downward Presence Detection, 24m Range - 1-10V DC

White round housing, Recessed or surface ceiling mount

1 x switching channel, 1-30 min Delay OFF, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360/24 Slave

360° Downward Presence Detection, 24m Range

White round housing, Recessed or surface ceiling mount

Parallel connection to master sensor required
Class II, IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/24 Plus

360° Downward Presence Detection, 24m Range

White round housing, Recessed or surface ceiling mount

2 x switching channels, Delay OFF: 1-30 min - Light / 1-20 min - HVAC, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/32

360° Downward Presence Detection, 32m Range

White round housing, Recessed or surface ceiling mount

1 x switching channel, 1-30 min delay OFF, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/32 Plus

360° Downward Presence Detection, 32m Range

White round housing, Recessed or surface ceiling mount

2 x switching channels, Delay OFF: 1-30 min - Light / 1-120 min - HVAC, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/32 Slave

360° Downward Presence Detection, 32m Range

White round housing, Recessed or surface ceiling mount

Parallel connection to master sensor required

Class II, IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/32 Corridor

360° Downward Presence Detection, 32 x 16m Elliptical Range

White round housing, Recessed or surface ceiling mount

1 x switching channel, 1-30 min Delay OFF, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

ESYLUX Compact PIR Sensor - PD-C 360i/24 DIM Plus WH

360° Downward Presence Detection, 32 x 4m Range - 1-10V DC DIM

White round housing, Recessed or surface ceiling mount

2 x switching channels, Delay OFF: 1-15 min - Light @ 1-10V DC / 1-120 min - HVAC @ 2A, Manual override

2300W (Resistive) 600W (LED), Class II

IP20 - Recess mount / IP54 - Surface mount (kits required - see below)

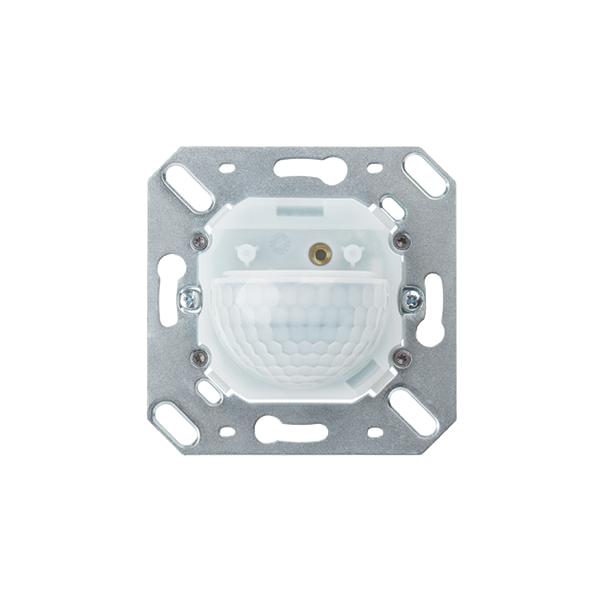

ESYLUX PIR Sensors - PD180i/R

180° Horizontal Presence Detection, 8m x 16m Range

White round housing, Wall mount, 30 sec-120 min Delay OFF

2 x channels, 60 min @ 2300W/600W - Light / 120 min @ 2A - HVAC

Class II, IP20 - Recess mount / IP44 - Surface mount (box required - see below)

Decorative front trim as accessory.

ESYLUX Compact MINI PIR Sensor - MD-C 360i/6 Mini

360° Downward Motion Detection, 6m Range

Ceiling mount, 20mm dia. cut-out, 1-30 min Delay OFF

690W (Resistive) / 170W (LED), Class II, IP65

ESYLUX Compact MINI PIR Sensor - MD-C 360i/8 Mini

360° Downward Motion Detection, 8m Range

Ceiling mount, 25mm dia. cut-out, 1-15 min Delay OFF

2300W (Resistive) / 600W (LED), Class II, IP65

ESYLUX Compact MINI PIR Sensor - MD-C 360i/12 Mini

360° Downward Motion Detection, 12m Range

Ceiling mount, 25mm dia. cut-out, 1-15 min Delay OFF

2300W (Resistive) / 600W (LED), Class II, IP65

ESYLUX Compact MINI PIR Sensor - PD-C 360i/6 Mini

360° Downward Presence Detection, 6m Range

Ceiling mount, 20mm dia. cut-out, 1-30 min Delay OFF

690W (Resistive) / 170W (LED), Class II, IP65

ESYLUX Compact MINI PIR Sensor - PD-C 360i/8 Mini

360° Downward Presence Detection, 8m Range

Ceiling mount, 25mm dia. cut-out, 1-15 min Delay OFF

2300W (Resistive) / 600W (LED), Class II, IP65

ESYLUX Compact MINI PIR Sensor - PD-C 360i/12 Mini

360° Downward Presence Detection, 12m Range

Ceiling mount, 25mm dia. cut-out, 1-15 min Delay OFF

2300W (Resistive) / 600W (LED), Class II, IP65

ESYLUX Compact MINI PIR Sensor - PD-C 360i/8 Slave

360° Downward Presence Detection, 8m Range

Ceiling mount, 25mm dia. cut-out

Parallel connection to master sensor required

Class II, IP65

ESYLUX Compact PIR Sensor Accessory

Recess Mount Kit

ESYLUX FLAT PIR Sensor accessory

Recess Mount Kit

ESYLUX Compact PIR Sensor Accessory

White Surface Mount Kit - IP54

ESYLUX Compact PIR Sensor Accessory

Black Surface Mount Kit - IP54

104mm oversize trim also required for FLAT

ESYLUX Compact PIR Sensor Accessory

Silver Surface Mount Kit - IP54

Requires either an 8m or 24m/32m silver trim kit

ESYLUX Compact PIR Sensor Accessory
Black Trim Kit - 8m

ESYLUX Compact PIR Sensor Accessory Black Trim Kit - 24m/32m

ESYLUX Compact PIR Sensor Accessory
Silver Trim Kit - 8m

ESYLUX Compact PIR Sensor Accessory

Silver Trim Kit - 24m/32m

ESYLUX Flat PIR Sensor Accessory

Oversize Trim (cover only) - 104mm Round White

Required for surface mounted sensors and solution for oversize holes

ESYLUX Flat PIR Sensor Accessory

Oversize Trim (cover only) - 104mm Round Black

Required for surface mounted sensors and solution for oversize holes

ESYLUX Flat PIR Sensor Accessory

Polished Glass Trim (cover only) - 94mm Round White

ESYLUX Flat PIR Sensor Accessory

Polished Glass Trim (cover only) - 94mm Round Black

ESYLUX Flat PIR Sensor Accessory

Polished Glass Trim (cover only) - Square White

ESYLUX Flat PIR Sensor Accessory

Polished Glass Trim (cover only) - Square Black

ESYLUX Compact PIR Sensor Accessory

Basket Guard - IK10, 180 X 90mm, Suitable for Sports Hall use

ESYLUX Corridor Accessory

Cover - IP20

ESYLUX Corridor Accessory

Cover - IP20

ESYLUX Corridor Accessory
Cover - IP44

ESYLUX Corridor Accessory
Surface Mounting Box - IP44

ESYLUX Corridor Accessory
Remote Control Mobil - MDi/PDi

Remote control PDI/PLUS required for 1-10VDC sensor options

ESYLUX Compact PIR Sensor Accessory

Remote Control Esy-PEN
