ESYLUX Compact PIR Sensor -PD-C 360bt/8 APC10 PS plus DALI-2 360° Downward Presence Detection, 8m Range
Integral 250mA DALI-2 Power Supply and Application Controller. Individual control of up to 16 groups and 16 scenes. White round Housing, Recessed ceiling mount
4 x push button inputs, 16 x Lighting channels, 1 xHVAC channel, Regulate, Control, Dimming, Switching. Bluetooth programming directly via ESY-App
Class II, 230V AC, IP20, Max Switching 600w LED
Applicable programming remote: Esy Control APP
ESYLUX Compact PIR Sensor -PD-C 360bt/24 APC10 PS plus DALI-2 360° Downward Presence Detection, 24m Range
ESYLUX Compact PIR Sensor -PD-C 360bt/32 APC10 PS plus DALI-2 360° Downward Presence Detection, 32m Range
EP10428272-PD-C 360bt/8 APC20 PS plus DALI-2
360° Downward Presence Detection, 8m Range
Additional functions of APC20 on top of those from APC10 is : Time dependant control of functions, Stairwell function, Driver power cutoff, Swarm functions, Central functions
EP10428111-PD-C 360bt/24 APC20 PS plus DALI-2
360° Downward Presence Detection, 24m Range
EP10428289-PD-C 360bt/32 APC20 PS plus DALI-2
360° Downward Presence Detection, 32m Range
EP10428296-PD-C 360bt/8 APC30 HCL PS plus DALI-2
Additional functions of APC30 on top of those from APC20 is : Dedicated for use when Tuneable White lights are being used.
EP10428302-PD-C 360bt/24 APC30 HCL PS plus DALI-2
EP10428319-PD-C 360bt/32 APC30 HCL PS plus DALI-2
SMARTCONTROLLER APC10 PS DALI-2
DALI-2-certified control unit with integrated bus power supply (250 mA)
SMARTCONTROLLER APC20 PS DALI-2
SMARTCONTROLLER APC30 PS DALI-2
ESYLUX Compact PIR Sensor - PD-C 360/8 BMS DALI-2 360° Downward Presence Detection, 8m Range Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus
White round Housing, Recessed or surface ceiling mount
2 x push button inputs, 1 x channel, send values.
Class III, IP20 - Recess mount / IP54 - Surface mount (kits required - see below)
ESYLUX Compact PIR Sensor - PD-C 360/24 BMS DALI-2
360° Downward Presence Detection, 24m Range Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus
ESYLUX Compact PIR Sensor - PD-C 360/32 BMS DALI-2
360° Downward Presence Detection, 32m Range Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus
ESYLUX MD-C 360/40 BMS WAREHOUSE SM DALI-2
360° Downward Presence Detection, 40m Range Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus
Class III, IP20 - Recess mount / IP54 - Surface mount supplied
ESYLUX PD 180/16 BASIC BMS DALI-2
180° Presence Detection, 16m Range Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus
White round housing, Wall mount
EXSYLUX Flat PIR Sensor - PD-Flat 360/8i Round White DALI-2
Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus
1 x push button input, 16 x channel lighting , send values.
ESYLUX MINI PIR Sensor - PD-C 360/8 MINI BMS DALI-2 360° Downward Presence Detection, 8m Range Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus White round Housing, Recessed mount
1 x push button input, 1 x channel , send values.
Class III, IP55
ESYLUX MINI PIR Sensor - PD-C 360/8 MINI BMS BLACK DALI-2 360° Downward Presence Detection, 8m Range Suitable for decentralised light control in connection with a DALI-2 enabled application controller. Use as Input device with ESYLUX APC sensor, or interface with BMS, DALI, DALI-2, KNX, or C-Bus Black round Housing, Black lens, Recessed mount

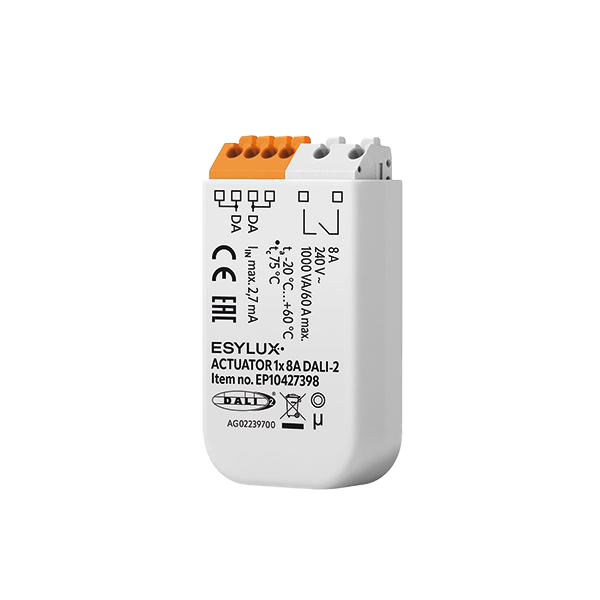

EP10427398-ACTUATOR 1X8A DALI-2
Uses the DALI BUS to switch non-DALI products

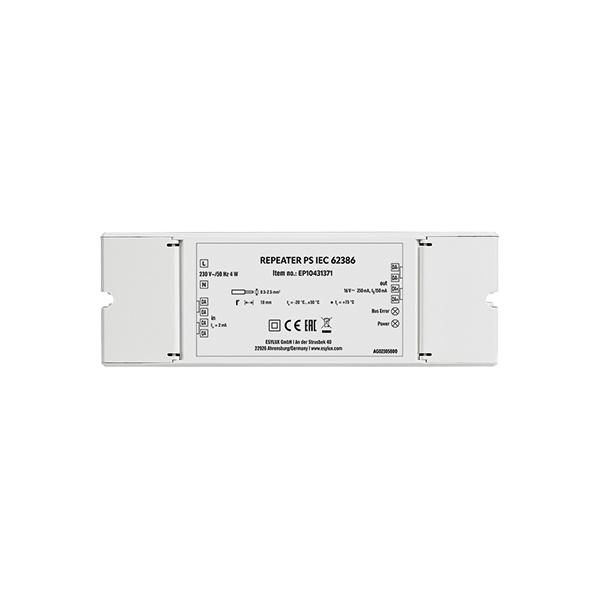

EP10431371-REPEATER PS DALI-2
Signal amplifier to extend maximum permissible length of DALI-2 BUS from 300m to 600M with integrated BUS voltage supply (150mA)
Peak Current DALI 2mA, Power Consumption 4W, Output current 150mA, IP20, Class II
EP10427695-APC ETHERNET LINK
By installing several APC control units and the associated DALI lines, the lighting in all areas of the building can be modernized conveniently and efficiently. In addition, the APC ETHERNET LINK can be used to enable interaction between several lines and to override them from a central location.

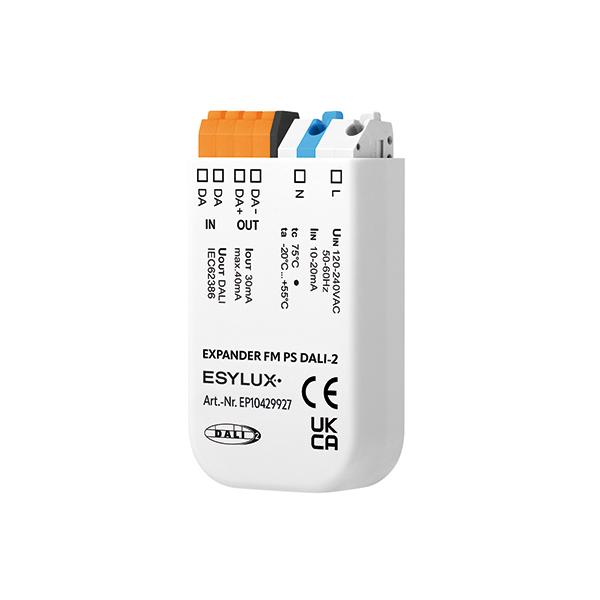

EP10429927-EXPANDER FM PS DALI-2
DALI-2 expander with integrated bus voltage supply (25 mA, guaranteed) for the control of additional DALI-2 control gear via a DALI address.
Suitable for installation in flush-mounted boxes.

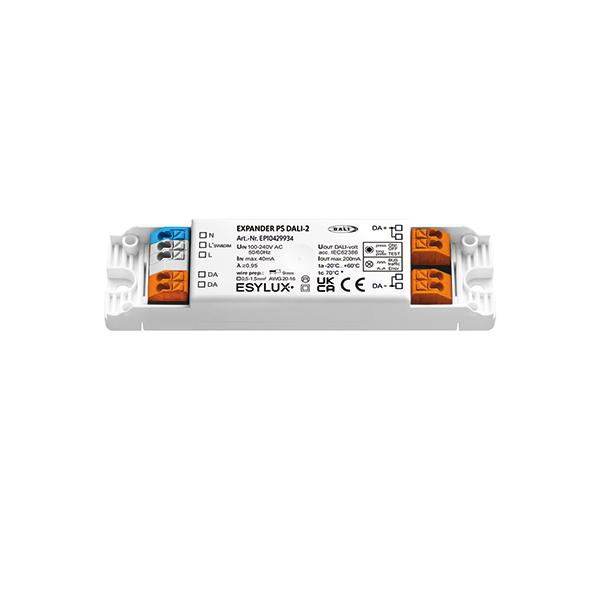

EP10429934-EXPANDER PS DALI-2
Universal DALI-2 expander with integrated bus voltage supply (200 mA, guaranteed) for the control of additional DALI-2 control gear via a DALI address. On the secondary side, the DALI-2 expander provides broadcast forwarding of the DALI commands received from the primary DALI line.
PUSH BUTTON X2 DALI-2 2 switch wall controller for DALI-2 systems, certified input device freely assignable buttons, bespoke labelling standard
Label Template download available under “Brochure”
PUSH BUTTON X4 DALI-2 4 switch wall controller for DALI-2 systems, certified input device freely assignable buttons, bespoke labelling standard
PUSH BUTTON X6 DALI-2 6 switch wall controller for DALI-2 systems, certified input device freely assignable buttons, bespoke labelling standard
PUSH BUTTON X8 DALI-2 8 switch wall controller for DALI-2 systems, certified input device freely assignable buttons, bespoke labelling standard
ESYLUX Compact PIR Sensor Accessory
Recess Mount Kit
ESYLUX PIR Sensor Accessory
White Surface Mount Kit - IP54
104mm oversize trim also required for FLAT
Black Surface Mount Kit - IP54
Requires either an 8m or 24m/32m black trim kit, 104mm oversize trim also required for FLAT
Silver Surface Mount Kit - IP54
Requires either an 8m or 24m/32m silver trim kit
ESYLUX Compact PIR Sensor Accessory Black Trim Kit - 8m
Black Trim Kit - 24m/32m
ESYLUX Compact PIR Sensor Accessory Silver Trim Kit - 8m
Silver Trim Kit - 24m/32m
Basket Guard - IK10, 180 x 90mm, Suitable for Sports Hall use.
ESYLUX FLAT PIR Sensor Accessory
Oversize Trim (cover only) - 104mm Round White
Required for surface mounted Flat sensors and solution for oversize holes
Oversize Trim (cover only) - 104mm Round Black

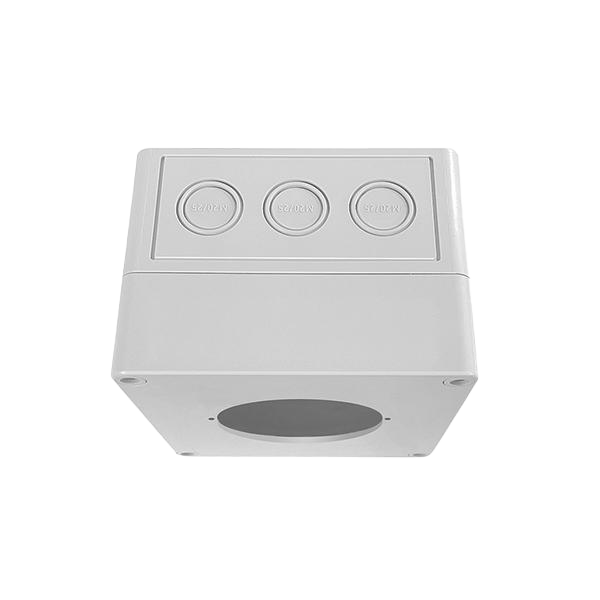

EP10427183-COMPACT APC MOUNTING BOX IP54 SM GREY
