Through Roof Fans

Through Roof Fan Kits

 Compare (0) Clear All

Click the tick to compare up to 5 products

  Print this Page

    Features

    • High quality aluminium cowl construction, with fan incorporated, for longevity of operation.
    • Includes roof flashing for metal based roofs
    • An optional lead roof flashing is available for concrete tile roofs
      (DCT0190) at an additional cost.
    • Supported by a 2 year warranty.

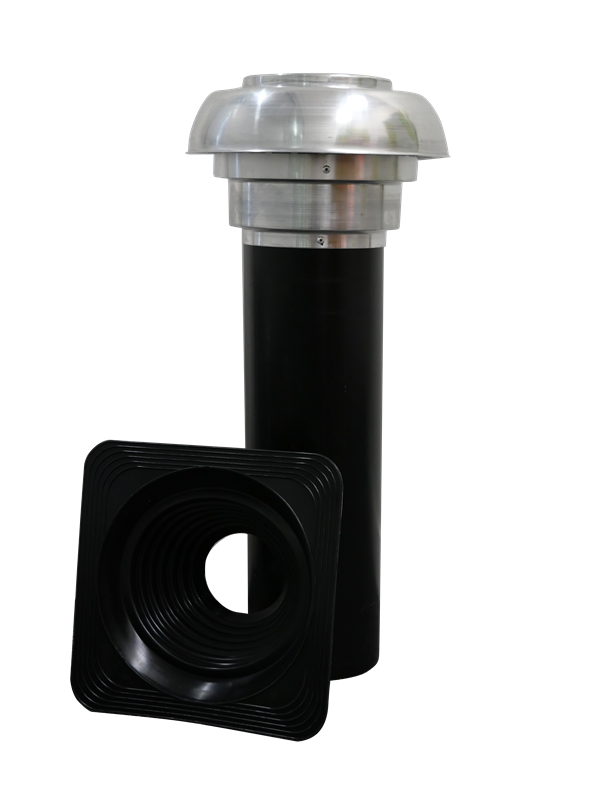

  • Through Roof Fan Cowls with Flashing and HDPE Tube - Extraction
    roof-cowl-kits
    DuctFan TypeMax.Fan WattsFree Air PerformanceSpecific Fan PowerSwitchingOrder Code
    250mmCentrifugal75W178 l/s, 640m3/hr0.42W/l/sStandardFAN2122
    250mmCentrifugal High Performance135W265 l/s, 954m3/hr0.51 W/l/sStandardFAN2123
    150mmCentrifugal70W153 l/s, 550m3/hr0.46 W/l/sStandardFAN0530
    150mmCentrifugal 3 Speed70W153 l/s, 550m3/hr0.46 W/l/sStandardFAN0967
    150mmAxial18W105 l/s, 380m3/hr0.17 W/l/sStandardFAN1060
    150mm18W50W105 l/s, 380m3/hr0.17 W/l/sStandardFAN0532

    Click on a blue Order Code to view Compliance Document

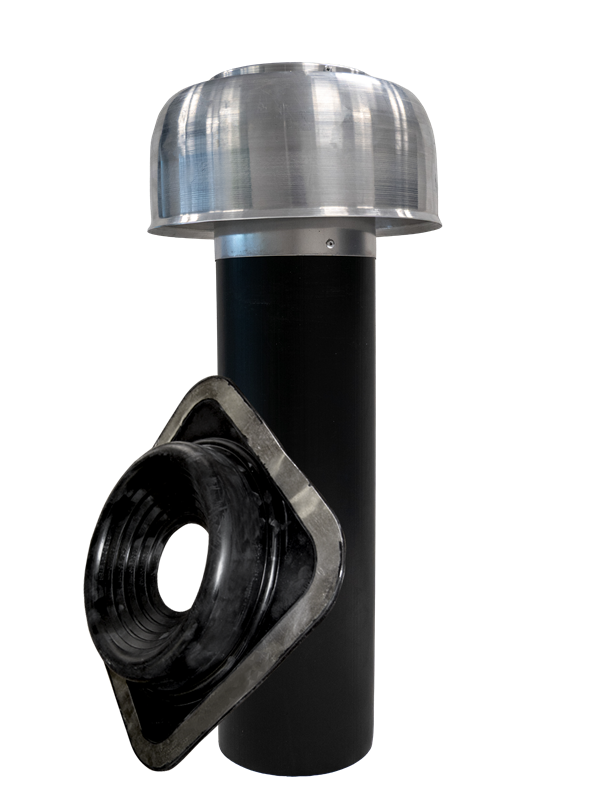

  • Through Roof Heavy Duty Fan Cowls with Flashing and HDPE Tube - Extraction
    roof-cowl-kits
    DuctFan TypeMax.Fan WattsFree Air PerformanceSpecific Fan PowerSwitchingOrder Code
    150mmCentrifugal70W153 l/s, 550m3/hr0.46 W/l/sStandardFAN0740
    150mmAxial18W105 l/s, 380m3/hr0.17 W/l/sStandardFAN0739

    Click on a blue Order Code to view Compliance Document

  • Through Roof Fan Cowls with Flashing and HDPE Tube - Supply
    roof-cowl-kits
    DuctFan TypeMax.Fan WattsFree Air PerformanceSpecific Fan PowerSwitchingOrder Code
    150mmAxial18W105 l/s, 380m3/hr0.17 W/l/sStandardFAN0534

    Click on a blue Order Code to view Compliance Document

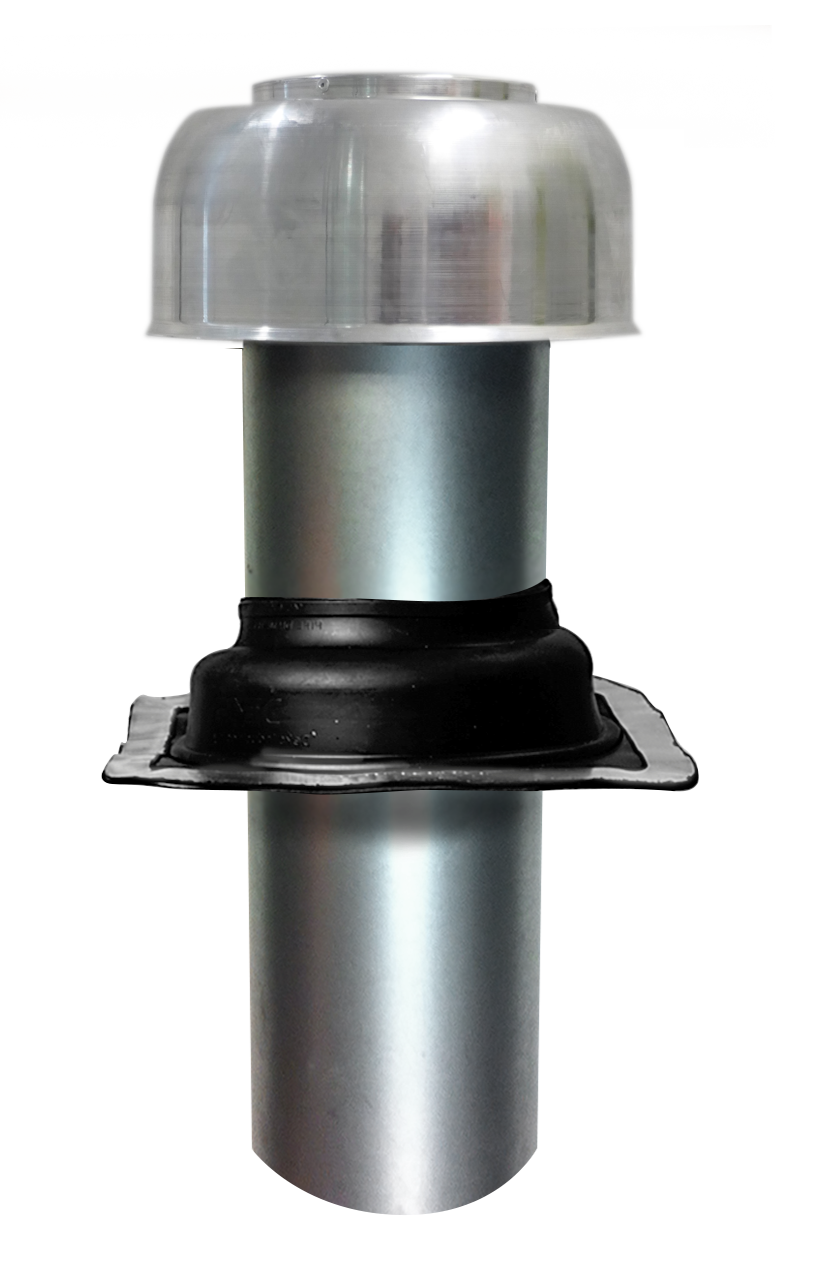

  • Through Roof Fan with Flashing for Metal Based Roof - Extraction
    Thru-Roof-Fan-System
    DuctFan TypeMax.Fan WattsFree Air PerformanceSpecific Fan PowerSwitchingOrder Code
    150mmCentrifugal70W153 l/s, 550m3/hr0.46 W/l/sStandardFAN0535
    150mmAxial18W105 l/s, 380m3/hr0.17 W/l/sStandardDCT0189

    Click on a blue Order Code to view Compliance Document
