Downlights

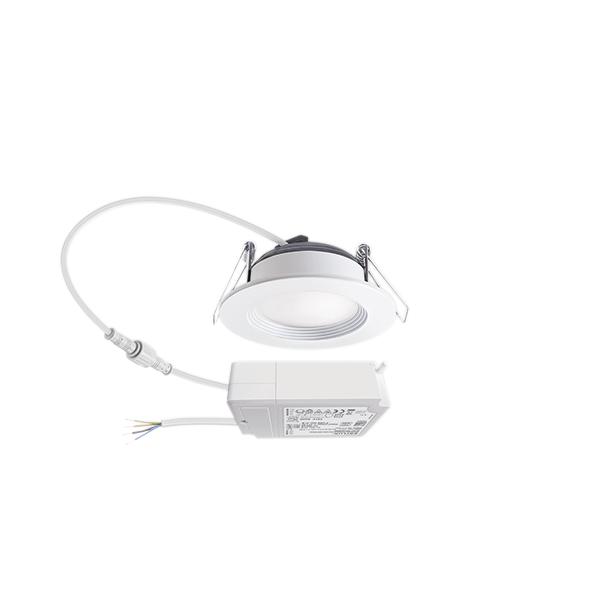

ELSA-2 DL 68 OP 100° 500 830 DALI WH

Fixed Colour 3000K – 500lm, Efficacy 76lm/w, CRI>80, SDCM 3, Milky Lens

Rated life L70B50: 60000hrs. DALI and DALI-2 certified, SwitchDIM capable

Recess mount 68mm cutout, Class I, IP44

ELSA-2 DL 68 OP 100° 500 840 DALI WH

Fixed Colour 4000K – 500lm, Efficacy 76lm/w, CRI>80, SDCM 3, Milky Lens

Rated life L70B50: 60000hrs. DALI and DALI-2 certified, SwitchDIM capable

Recess mount 68mm cutout, Class I, IP44

ELSA-2 DL 165 OP 110° 900 830 DALI WH

Fixed Colour 3000K – 900lm, Efficacy 94lm/w, CRI>80, SDCM 3, Milky Lens

Rated life L70B50: 60000hrs. DALI and DALI-2 certified, SwitchDIM capable

Recess mount 165mm cutout or surface mount (frame required – see below), Class I, IP44

ELSA-2 DL 165 OP 110° 900 840 DALI WH

Fixed Colour 4000K – 900lm, Efficacy 94lm/w, CRI>80, SDCM 3, Milky Lens

Rated life L70B50: 60000hrs. DALI and DALI-2 certified, SwitchDIM capable

Recess mount 165mm cutout or surface mount (frame required – see below), Class I, IP44

ELSA-2 DL 225 OP 110° 1800 830 DALI WH

Fixed Colour 3000K – 1700lm, Efficacy 89lm/w, CRI>80, SDCM 2, Milky Lens

Rated life L70B50: 60000hrs. DALI and DALI-2 certified, SwitchDIM capable

Recess mount 225mm cutout or surface mount (frame required – see below), Class I, IP44

ELSA-2 DL 225 OP 110° 1800 830 MD IR WH

Fixed Colour 3000K – 1650lm, Efficacy 94lm/w, CRI>80, SDCM 2, Milky Lens

Rated life L70B50: 60000hrs. ON/OFF switching. Integral 8mtr Motion Detector

Recess mount 225mm cutout or surface mount (frame required – see below), Class I, IP20
Applicable programming remote: EM10425509 or EP10425356

ELSA-2 DL 225 OP 110° 1800 830 PD IR DALI WH

Fixed Colour 3000K – 1750lm, Efficacy 92lm/w, CRI>80, SDCM 2, Milky Lens

Rated life L70B50: 60000hrs. DALI control. Integral 8mtr DALI Presence Detector

Recess mount 225mm cutout or surface mount (frame required – see below), Class I, IP20
Applicable programming remote: EP10425899 or EP10425356

ELSA-2 DL 225 OP 110° 1800 830 PD IR PS DALI WH

Fixed Colour 3000K – 1750lm, Efficacy 92lm/w, CRI>80, SDCM 2, Milky Lens

Rated life L70B50: 60000hrs. DALI control with integrated 200mA Power Supply. Integral 8mtr DALI Presence Detector

Recess mount 225mm cutout or surface mount (frame required – see below), Class I, IP20
Applicable programming remote: EP10425899 or EP10425356

ELSA-2 DL 225 OP 110° 1800 830 WH

Fixed Colour 3000K – 1700lm, Efficacy 89lm/w, CRI>80, SDCM 2, Milky Lens

Rated life L70B50: 60000hrs. ON/OFF switching

Recess mount 225mm cutout or surface mount (frame required – see below), Class I, IP44

ELSA-2 DL 225 OP 110° 1800 840 DALI WH

Fixed Colour 4000K – 1800lm, Efficacy 94lm/w, CRI>80, SDCM 2, Milky Lens

Rated life L70B50: 60000hrs. DALI and DALI-2 certified, SwitchDIM capable

Recess mount 225mm cutout or surface mount (frame required – see below), Class I, IP44

ELSA-2 DL 225 OP 110° 1800 840 MD IR WH

Fixed Colour 4000K – 1750lm, Efficacy 97lm/w, CRI>80, SDCM 2, Milky Lens

Rated life L70B50: 60000hrs. ON/OFF switching. Integral 8mtr Motion Detector

Recess mount 225mm cutout or surface mount (frame required – see below), Class I, IP20
Applicable programming remote: EM10425509 or EP10425356

ELSA-2 DL 225 OP 110° 1800 840 PD IR DALI WH

Fixed Colour 4000K – 1850lm, Efficacy 94lm/w, CRI>80, SDCM 2, Milky Lens

Rated life L70B50: 60000hrs. DALI control. Integral 8mtr DALI Presence Detector

Recess mount 225mm cutout or surface mount (frame required – see below), Class I, IP20
Applicable programming remote: EP10425899 or EP10425356

ELSA-2 DL 225 OP 110° 1800 840 PD IR PS DALI WH

Fixed Colour 4000K – 1850lm, Efficacy 94lm/w, CRI>80, SDCM 2, Milky Lens

Rated life L70B50: 60000hrs. DALI control with integrated 200mA Power Supply. Integral 8mtr DALI Presence Detector

Recess mount 225mm cutout or surface mount (frame required – see below), Class I, IP20
Applicable programming remote: EP10425899 or EP10425356

ELSA-2 DL 225 OP 110° 1800 840 WH

Fixed Colour 4000K – 1800lm, Efficacy 94lm/w, CRI>80, SDCM 2, Milky Lens

Rated life L70B50: 60000hrs. ON/OFF switching

Recess mount 225mm cutout or surface mount (frame required – see below), Class I, IP44

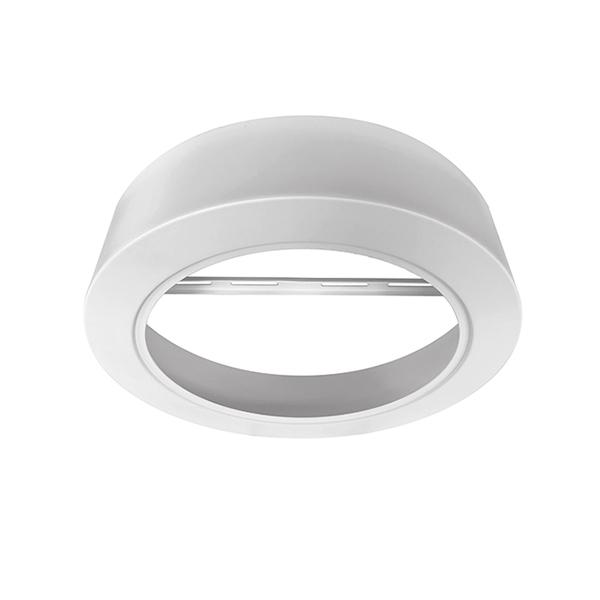

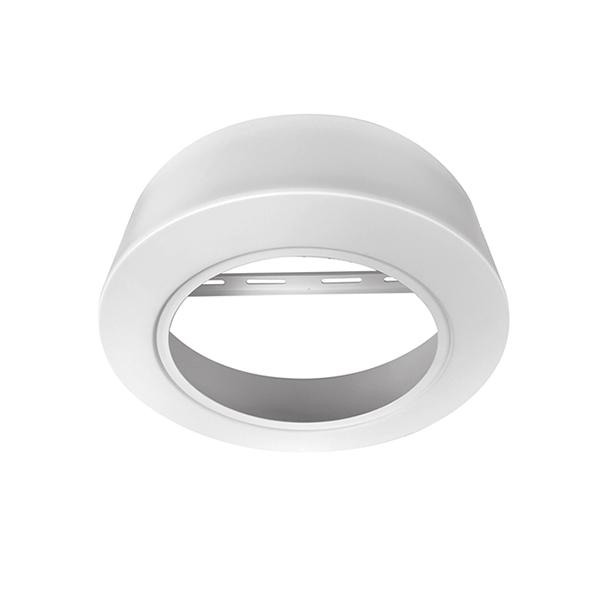

ELSA-2 MOUNTING FRAME 165 SM WH

Surface-mounted ceiling frame 165mm for ELSA series downlights

ELSA-2 MOUNTING FRAME 225 SM WH

Surface-mounted ceiling frame 225mm for ELSA series downlights

ESYLUX Compact PIR Sensor Accessory

Remote Control Mobil - MDi/PDi

Programming remote.

ESYLUX PIR Sensor Accessory

Remote Control Mobil - PDi/DALI

Programming remote.

ESYLUX PIR Sensor Accessory

Remote Control Esy-PEN

ESYLUX PIR Sensor Accessoryc

DALI Power Supply Module - 200mA

Power Supply for DALI Bus

Actuator Switch DALI Full Automatic

Module for conversion of DALI BUS commands to switching signals. Enables switching of non-DALI product through DALI sensor C3/C4
